| Quantity: | |
|---|---|
Our advantage：
● We can provide factory price with trading company services
● We control production quality very strictly to keep none compensation
● We guarantee 24 hours response and 48 hours solution providing service
● We accept small order quantity before formal cooperation
● We offer good quality with reasonable price, faster delivery with better payment terms
● We have professional teams and the factory
● It's very important for a company to be honest in the process of trading and so do we
Conventional type
| Grade | Thidkness (mm) | Max.Core loss P1.5/50 (W/kg) | Min.Magnetic Polarization J5000 (T) | Min.Stacking Factor | Min.Number of Bends | Conventional Density (kg/dm²) |
| 35WW230 | 0.35 | 2.10 | 1.62 | 0.95 | 2 | 7.60 |
| 35WW250 | 2.28 | 1.64 | 2 | 7.60 | ||
| 35WW270 | 2.45 | 1.64 | 2 | 7.60 | ||
| 35WW300 | 2.65 | 1.64 | 2 | 7.65 | ||
| 35WW360 | 3.20 | 1.65 | 3 | 7.65 | ||
| 35WW440 | 3.40 | 1.67 | 3 | 7.70 | ||
| 50WW250 | 0.50 | 2.30 | 1.64 | 0.97 | 2 | 7.60 |
| 50WW270 | 2.48 | 1.64 | 2 | 7.60 | ||
| 50WW290 | 2.65 | 1.64 | 2 | 7.60 | ||
| 50WW310 | 2.85 | 1.64 | 2 | 7.60 | ||
| 50WW350 | 3.00 | 1.65 | 3 | 7.65 | ||
| 50WW400 | 3.20 | 1.65 | 5 | 7.65 | ||
| 50WW470 | 3.30 | 1.70 | 5 | 7.70 | ||
| 50WW600 | 4.20 | 1.68 | 10 | 7.75 | ||
| 50WW700 | 4.70 | 1.70 | 10 | 7.80 | ||
| 50WW800 | 5.50 | 1.71 | 10 | 7.80 | ||
| 50WW1000 | 6.00 | 1.74 | 10 | 7.85 | ||
| 50WW1300 | 7.00 | 1.74 | 10 | 7.85 |
High efficience type
| Grade | Thickness (mm) | Max.Core loss P1.5/50 (W/kg) | Min.Magnetic Polarization J5000 (T) | Min.Stacking Factor | Min.Number of Bends | Conventional Density (kg/dm²) |
| 35WH230 | 0.35 | 2.28 | 1.66 | 0.95 | 2 | 7.65 |
| 35WH250 | 2.45 | 1.67 | 2 | 7.65 | ||
| 35WH270 | 2.65 | 1.68 | 5 | 7.70 | ||
| 35WH300 | 2.80 | 1.69 | 5 | 7.70 | ||
| 50WH350 | 0.50 | 2.90 | 1.68 | 0.97 | 5 | 7.70 |
| 50WH470 | 3.00 | 1.71 | 5 | 7.70 | ||
| 50WH600 | 3.50 | 1.72 | 10 | 7.75 | ||
| 650WH600 | 0.65 | 4.50 | 1.72 | 0.97 | 10 | 7.75 |

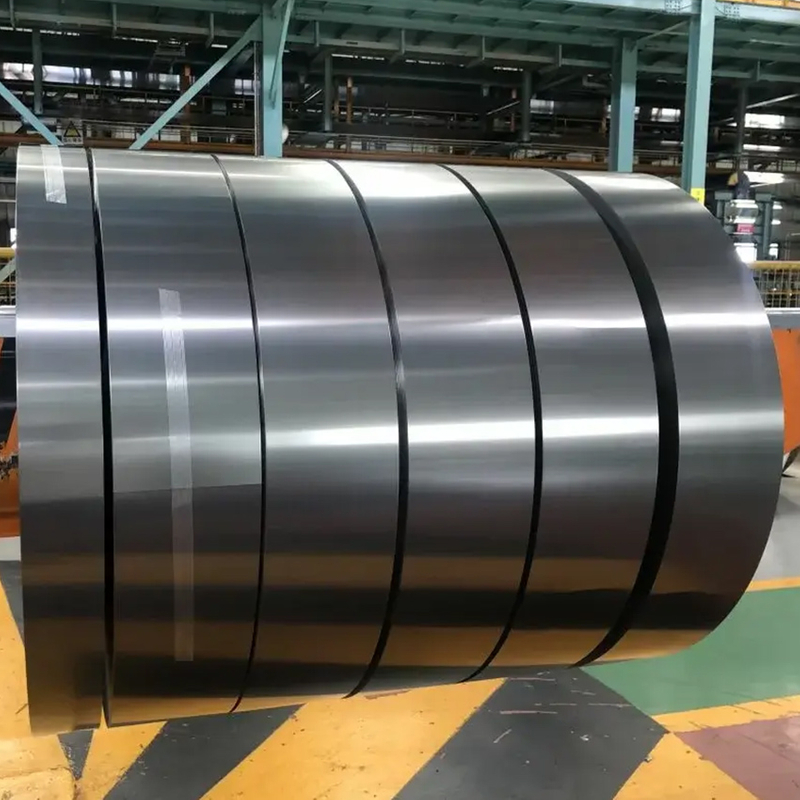

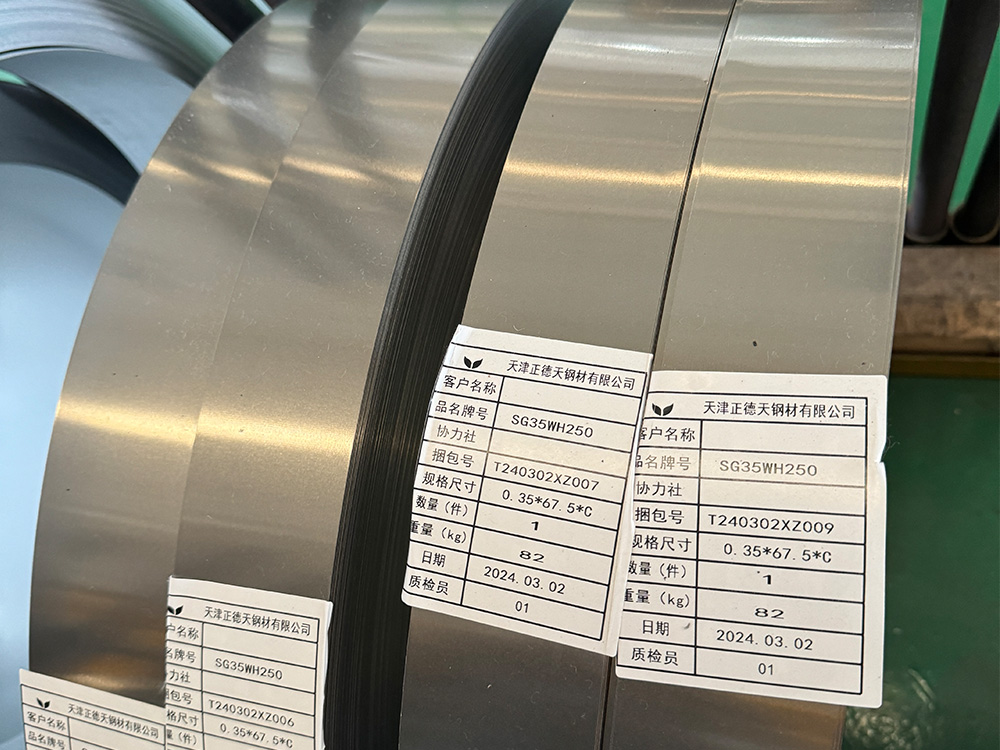

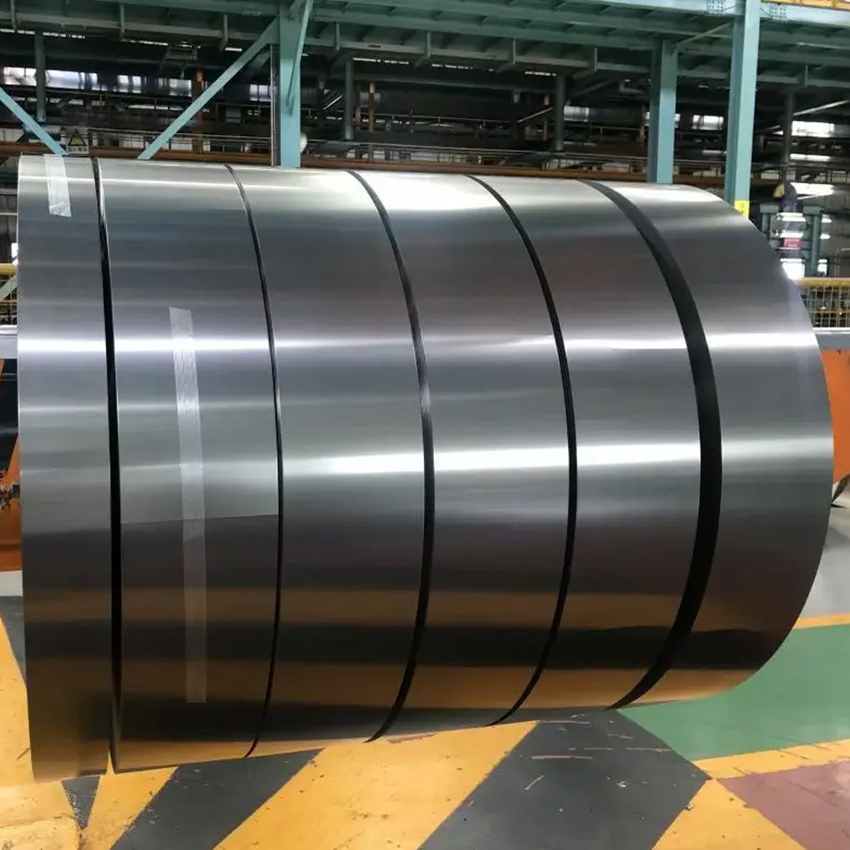

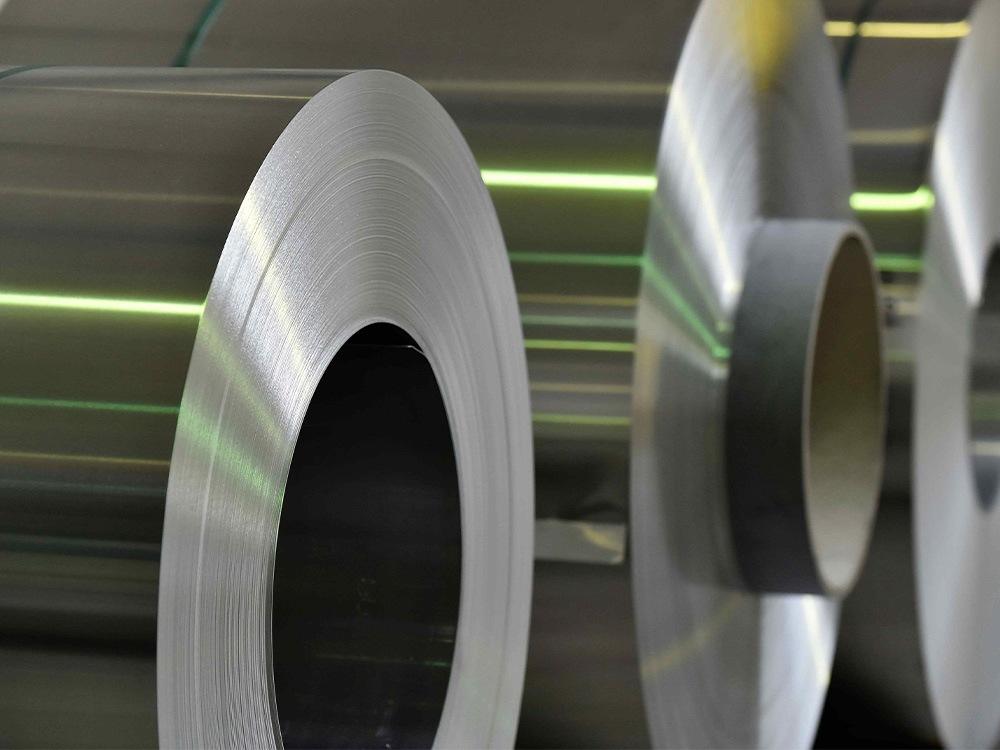

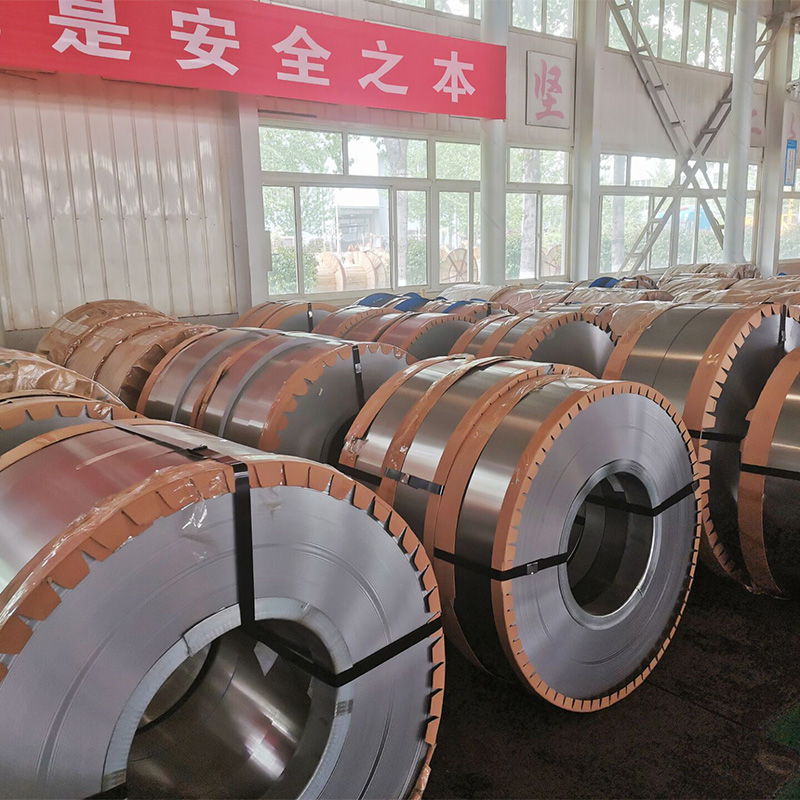

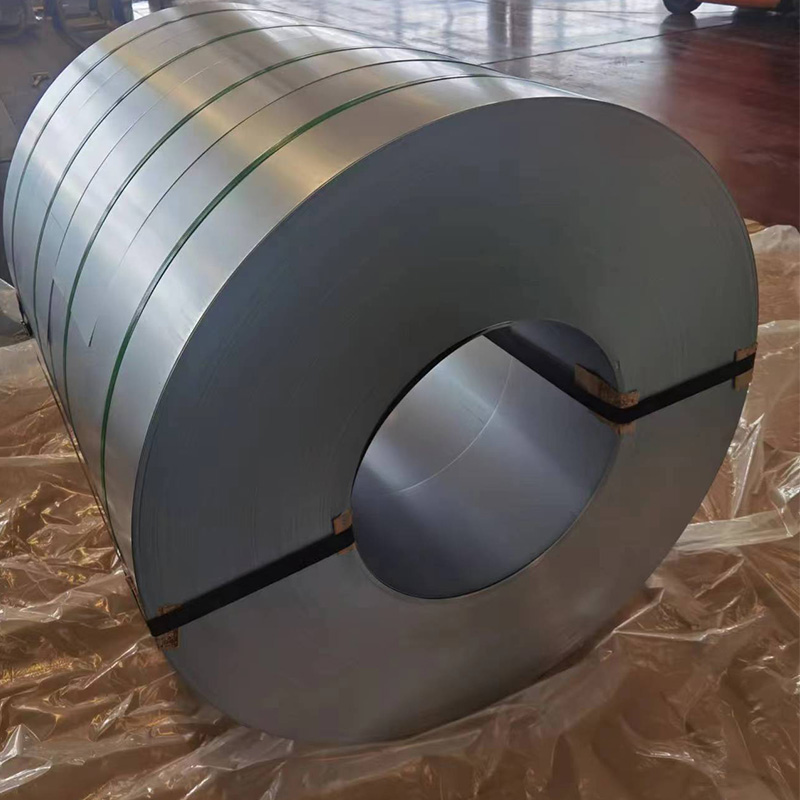

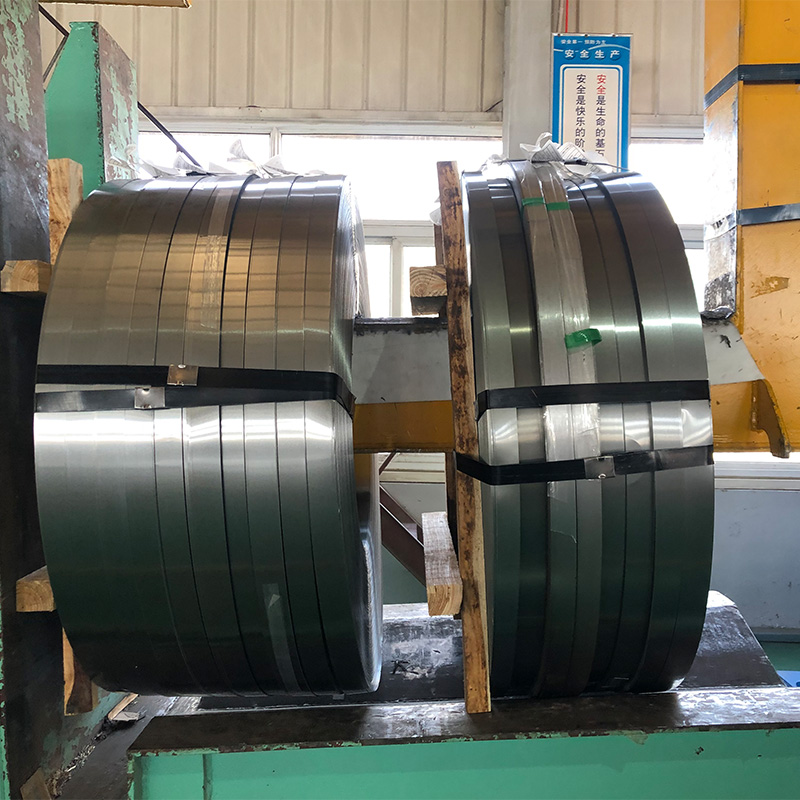

| Products Display |
 |  |  |
 |  |  |
 |  |  |
 |  |  |
